Easy to Sell. Easier to Install.
Kindoo is the smarter way to grow your reseller business fast.
In its simplest form, combining the Kindoo App with the KIN D module added to an existing electronic locking device provides users with a full-featured access control system without the cost and complexity of traditional access solutions. What used to be too costly and out
of reach for many SMBs is now accessible with Kindoo.
Our solution is simple for users and even simpler for resellers to install. It deploys in minutes, integrates with virtually any electronic lock or door, and delivers secure, smartphone-based access without complex wiring or IT support.

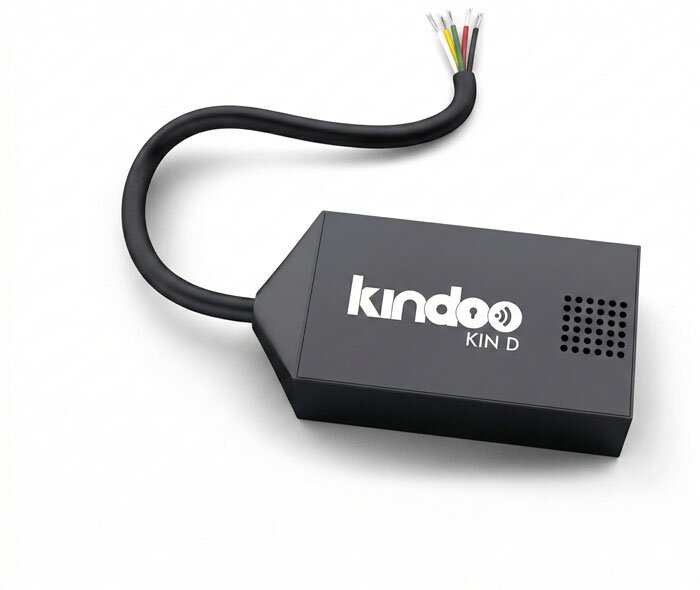

KIN D ACTUATOR
The KIN D Actuator transforms any electric door,gate, or turnstile into a smartphone-operated entry point without replacing hardware or adding complexity.
Why Dealers Love it:
- Retrofit-ready: Works with virtually any electric lock, perfect for upgrades and quick installations.
- Fast and simple: No servers, no IT setup, minimal wiring, which is ideal for small businesses or multi-site rollouts.
- Profitable performance: Quick installation and low support requirements mean better margins and repeat business.
Key Specifications:
- Power: 12-24 V (DC or AC)
- Max current draw: 200 mA
- Operating temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Dry relay contacts: 2 A
- Wireless range: 20 m (65 ft) without obstacles
- 256-bit encryption

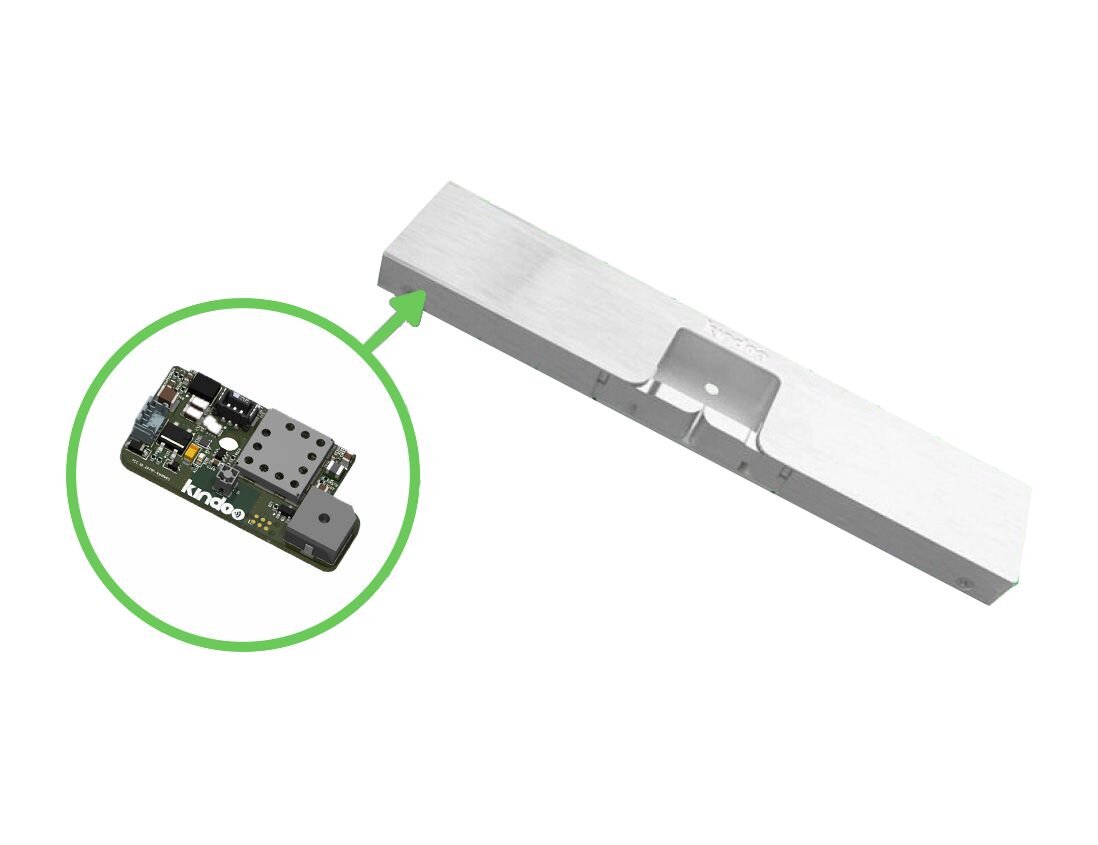

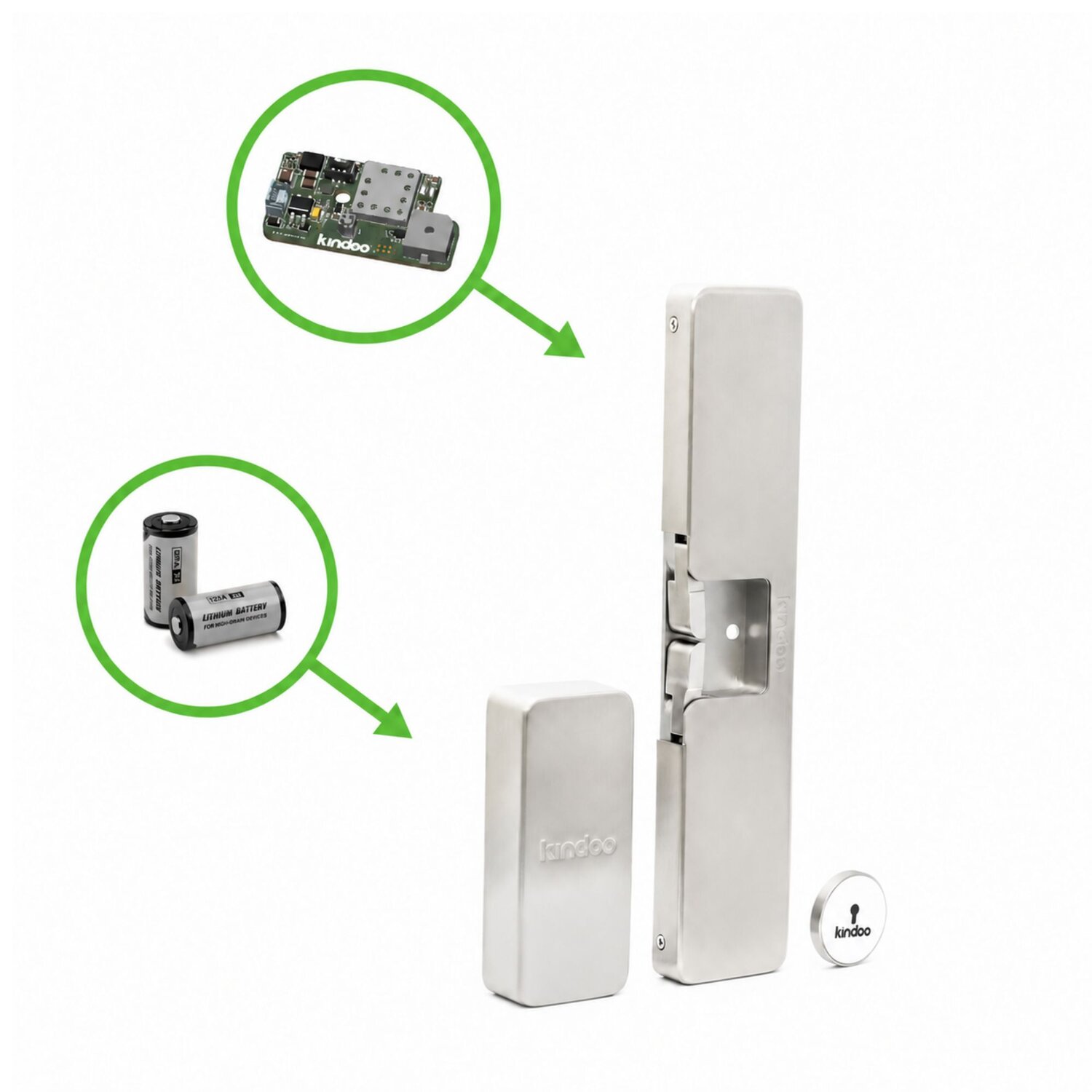

KIN S-SM-B01: Battery-Operated, Surface Mounted Strike With Integrated Access Control
The KIN S-SM-B01 is a battery-operated, surface-mounted electric strike with integrated Kindoo access control. Ideal for doors with crash bars where wiring is impractical—glass fronts, leased spaces, retrofits, remote locations—this strike mounts directly to the door frame surface with no power supply or external wiring required. The battery supports up to 100,000 openings and is designed for simplicity and minimal downtime.
Why Dealers Love it:
- True wireless: No panel wiring, no cutting, and no internet required, excellent for leased facilities, glass-door environments, or older buildings.
- Fast deployment: Attach the strike and activation pad, mount the battery pack, and configure via the app.
- High margins: Retrofit jobs often mean less competition, faster installs, and stronger returns.
- Durable and secure: Rugged stainless-steel construction, tested for 250,000 cycles.
Key Specifications:
- Up to 1⁄2-inch latch
- Non-handed, Stainless Steel 304
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- Endurance: 250,000 cycles
- Operating temp: 0 °C to 49 °C (32 °F to 120 °F)
- Includes activation pad (IP65 rated) and battery pack (4× CR123 commercially available batteries)

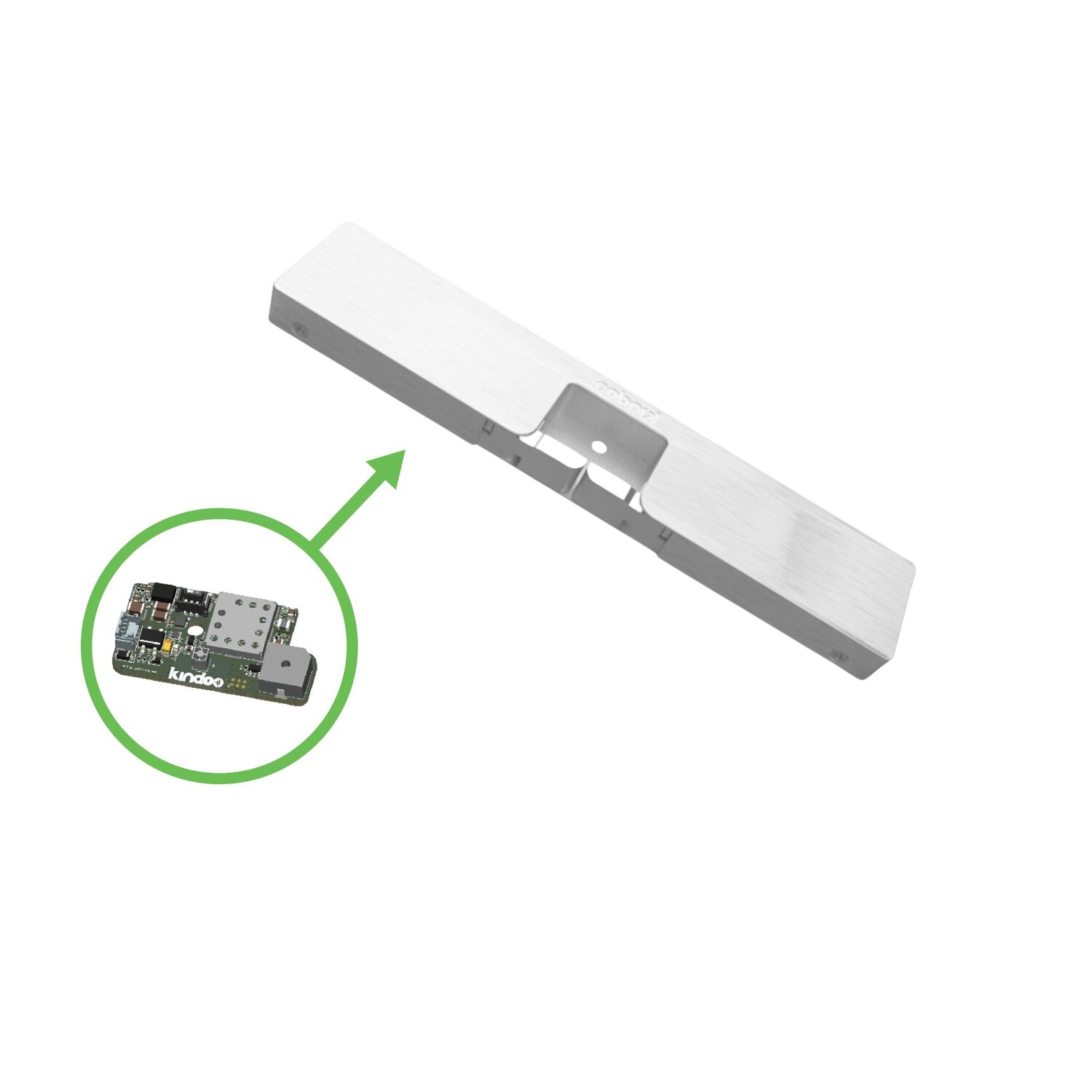

KIN S-SM-W02: Wired, Surface Mounted Strike With Integrated Access Control
The KIN S-SM-W02 is a wired, surface-mounted electric strike with integrated Kindoo access control designed for doors with crash bars that are already wired for power. Installers simply connect it to a 12-24 V DC power supply, mount it on the frame surface, and manage access through the Kindoo app, with no cutting, extra modules, or complex integrations required.
Why Dealers Love it:
- Power-ready: Connects to existing 12-24 V systems ideal for high-use doors and entry points.
- Simple installation: Surface-mounted design means no frame cut-outs or major modifications needed.
- Easy rip-and-replace upgrade: Same dimensions as popular brands’ strikes, allowing quick removal and replacement.
- High-traffic durability: Built for endurance in demanding environments.
- Streamlined inventory: One strike type works across many doors up to a 1⁄2-inch latch, simplifying quoting and inventory.
Key Specifications:
- Power: 12-24 V (DC or AC)
- Up to 1⁄2-inch latch
- Non-handed, Stainless Steel 304
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- Endurance: 250,000 cycles
- Operating temp: 0 °C to 49 °C (32 °F to 120 °F)

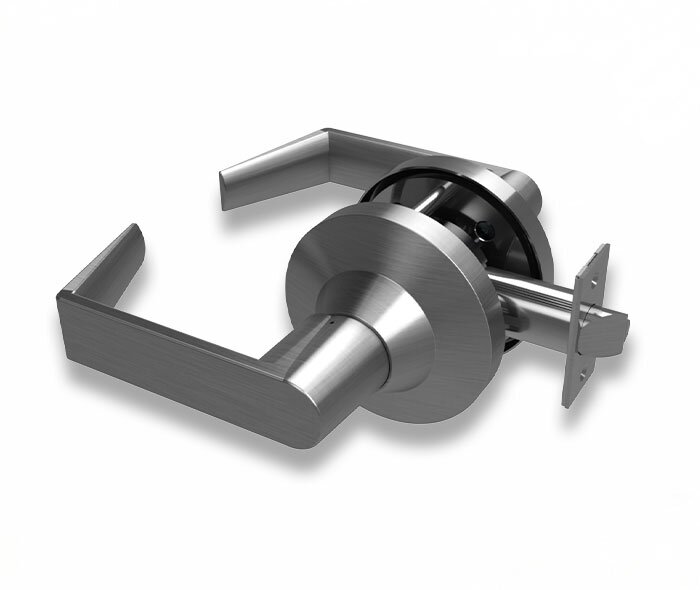

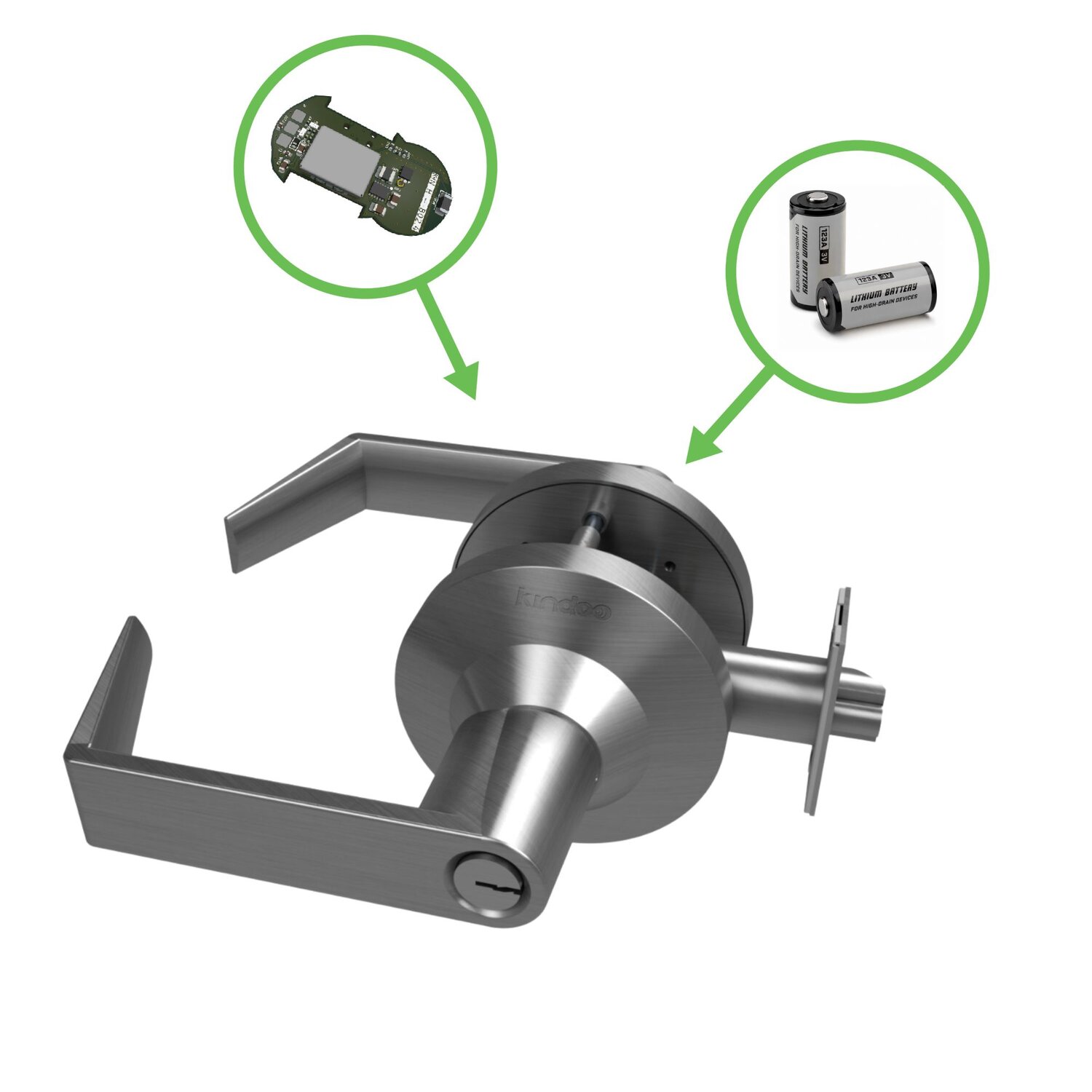

KIN H CL01: Battery-Operated Handle with Integrated Access Control
The KIN H CL01 Handle expands the Kindoo ecosystem with a fully integrated, battery-powered smart door handle. Designed as a simple drop-in replacement for existing cylindrical lever handles, it is simple to install and offers smartphone control, with no internet required.
Why Dealers Love it:
- Plug and play installation: Drops into existing handle preps with no rewiring or new holes.
- Compatible fit: Works with standard ANSI 161 door prep with 4 7/8” strike (designed to meet ANSI Grade 1 and UL 10C standards).
- Battery powered: 2 × CR123 commercially available batteries support 10 years of battery life based on 10 unlocks a day.
- Vandalism-resistant durability: Full stainless steel construction with no exposed electronics—built for high-traffic, long-term reliability.
Key Specifications:
- Door Prep: Standard ANSI 161 with 4 7/8” strike
- Door thickness: from 1 1/4” to 2”
- Backset: 2 3/4” & 2 3/8”
- 2 x CR123 Batteries
- 32 °F to 120 °F (0 °C to 49 °C)
- Cylinder Key in Lever (Custom order: SFIC, LFIC)
- Brushed Stainless Steel (Custom order: Bright Chrome, Dull Chrome, Bright Brass, Dull Brass, Dark Oil Rubbed Bronze)
- Designed to meet ANSI Grade 1 and UL 10C standards (Testing in Progress)
